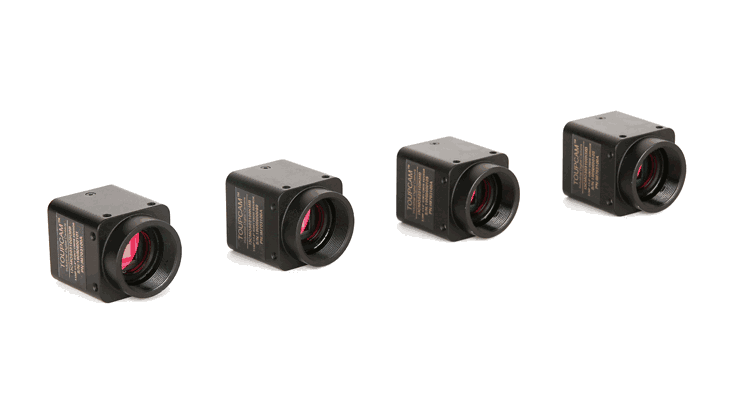

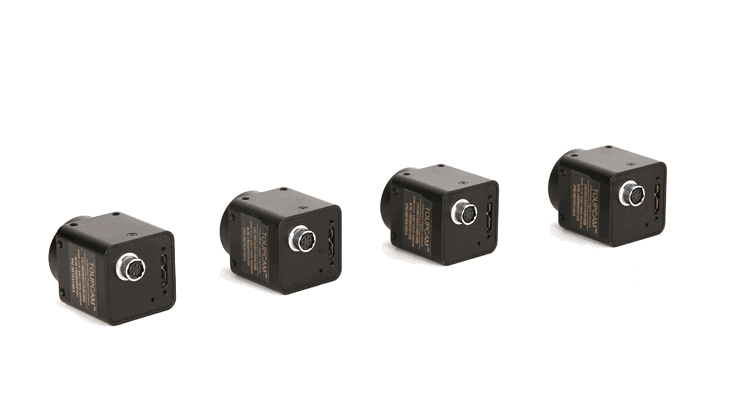

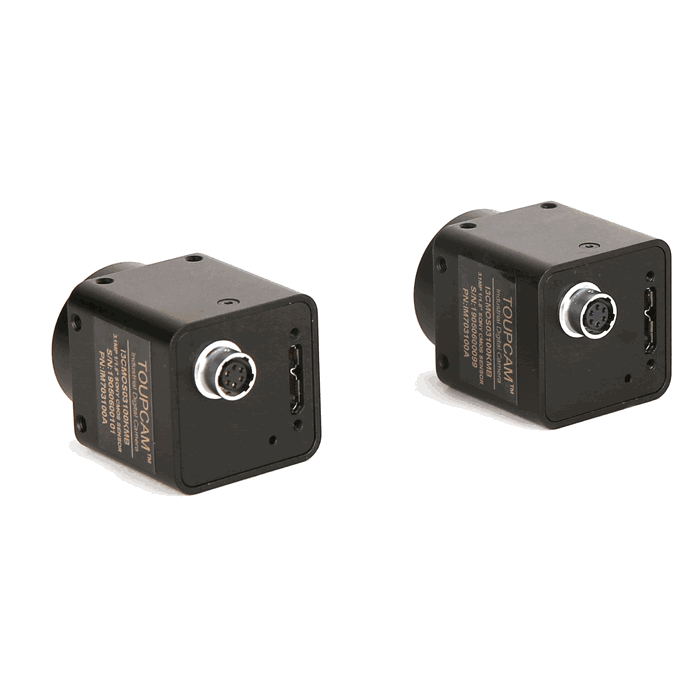

I3CMOS 系列是工业应用的USB3.0接口黑白相机系列
I3CMOS系列黑白相机，机身小巧，性价比极高。该系列相机采 用USB3.0接口，快速实时传输非压缩图像的图像采集设备，支 持通过客户端软件进行图像数据采集和参数设置（如工作模 式、图像参数调节等）。
I3CMOS 系列相机的基本特性：
|
型号 参数 |
I3CMOS12300KMA |
|---|---|
|
1230万像素 1.1” CMOS USB3.0工业相机 |
|
|
相机 |
|
|
传感器型号 |
Sony IMX304LLR-C |
|
像元尺寸 |
3.45 µm x 3.45 µm |
|
靶面尺寸 |
1.1” |
|
帧率&分辨率 |
23.4fps@4096 x3000, 46.3fps@2048 x 1500, 46.3fps@1024 x 750 |
|
转换增益 |
2.71 (e-/ADU) |
|
读出噪声 |
2.12 (e-) |
|
满井电荷 |
11.1 (ke-) |
|
动态范围 |
72dB |
|
信噪比 |
40.5dB |
|
灵敏度 |
1830mV |
|
暗电流 |
0.15mV |
|
增益范围 |
1-50倍 |
|
曝光时间范围 |
6µs-15sec |
|
快门模式 |
全局快门 |
|
Binning模式 |
软件2x2，3x3，4x4 |
|
数据接口 |
USB3.0（USB3.1 GEN1） |
|
数字IO |
1路光耦隔离输入，1路光耦隔离输出，1路非隔离输入输出口 |
|
数据格式 |
8bit / 12bit |
|
一般规范 |
|
|
供电方式 |
USB3.0接口供电 |
|
功耗 |
<3.0W |
|
温度 |
工作温度-10~50℃，储藏温度-30~70℃ |
|
湿度 |
20%-80%无冷凝 |
|
尺寸 |
38mmx38mmx33mm |
|
重量 |
70g |
|
镜头接口 |
C接口 |
|
软件 |
完整的SDK开发包/ToupView |
|
平台和体系结构 |
Win32/WinRT/Linux/macOS/Android；X86/X64/armhf/armel/arm64 |
|
认证 |
CE，FCC |
型号
传感器型号与尺寸
像素(μm)
G光灵敏度
暗电流
FPS/分辨率
采样平均
曝光时间
外形尺寸
外壳尺寸为33mm x 33mm x 33mm 的I3CMOS
I3CMOS00500KMA
0.5M/IMX433LLJ(M,GS)
1/1.7“ (7.31x5.58)
9.0x9.0
8100mv with 1/30s
0.30mv with 1/30s
166.5fps@812×620
1x1
6us~15s
33mm
I3CMOS01500KMA
1.5M/IMX273LLR(M,GS)
1/2.9“ (4.97x3.73)
3.45×3.45
1830mv with 1/30s
0.19mv with 1/30s
226.5fps@1440×1080
506fps@720×540
1x1
2x2
15us~15s
33mm
I3CMOS02300KMA
2.3M/IMX174LLJ(M,GS)
1/1.2“ (11.25x7.03)
5.86x5.86
1650mv with 1/30s
0.15mv with 1/30s
164.5fps@1920×1200
1x1
15us~15s
33mm
I3CMOS02300KMB
2.3M/IMX249LLJ(M,GS)
1/1.2“ (11.25x7.03)
5.86x5.86
1650mv with 1/30s
0.15mv with 1/30s
30fps@1920×1200
1x1
42us~15s
33mm
I3CMOS02400KMA
2.4M/GMAX4002(M,GS)
1/1.7“ (8.19x4.80)
4.0x4.0
3.26x107e-/((W/m2)·s)
8.3e-/s
155fps@2048×1200
620fps@1024×600
1x1
2x2
55us~15s
33mm
I3CMOS03100KMA
3.1M/IMX252LLR(M,GS)
1/1.8“ (7.07x5.30)
3.45×3.45
1830mv with 1/30s
0.15mv with 1/30s
110.6fps@2048×1536
233.8fps@1024×768
1x1
1x1
15us~15s
33mm
I3CMOS03100KMB
3.1M/IMX265LLR(M,GS)
1/1.8“ (7.07x5.30)
3.45×3.45
1830mv with 1/30s
0.15mv with 1/30s
55.4fps@2048×1536
115.1fps@1024×768
1x1
1x1
15us~15s
33mm
I3CMOS03200KMA
3.2M/IMX900AMR(C,GS)
1/3.1“ (4.61x3.46)
2.25x2.25
1807mv/lx/s
0.15mv with 1/30s
53.4fps@2048×1536
126.8fps@1024×768
1x1
1x1
11us~15s
33mm
I3CMOS04200KMA
4.2M/IMX664AAMR1(M,RS)
1/1.8“(7.80x4.41)
2.9×2.9
TBD
90fps@2688×1520
1x1
15us~15s
33mm
I3CMOS05000KMA
5.0M/IMX250LLR(M,GS)
2/3“ (8.45x7.07)
3.45×3.45
1830mv with 1/30s
0.15mv with 1/30s
70.9fps@2448×2048
175.2fps@1224×1024
1x1
1x1
15us~15s
33mm
I3CMOS05000KMB
5.0M/IMX264LLR(M,GS)
2/3“ (8.45x7.07)
3.45×3.45
1830mv with 1/30s
0.15mv with 1/30s
35.6fps@2448×2048
87.6fps@1224×768
1x1
1x1
15us~15s
33mm
I3CMOS05000KMC
5.0M/IMX250MZR(M,GS)
2/3“ (8.45x7.07)
Polarsens
3.45×3.45
684mv with 1/30s
0.15mv with 1/30s
35.6fps@2448×2048
87.6fps@1224×768
1x1
1x1
15us~15s
33mm
I3CMOS05100KMA
5.1M/GMAX3405(M,GS)
2/3“ (8.32x6.96)
3.4x3.4
2.36x107e-/((W/m2)·s)
4.4e-/s
71fps@2448×2048
100fps@1224×1024
1x1
2x2
10us~15s
33mm
I3CMOS06300KMA
6.3M/IMX178LLJ(M, RS)
1/1.8“ (7.37x4.92)
2.4x2.4
760mv with 1/30s
0.15mv with 1/30s
58.7fps@3072×2048
59.5fps@1536×1024
1x1
2x2
17us~15s
33mm
I3CMOS08000KMA
8.0M/IMX546-AAMJ(M,GS)
2/3“ (7.78x7.78)
2.74x2.74
2649mv/lx/s
0.25mv with 1/30s
41fps@2840x2840
118fps@1420x1420
1x1
1x1
30us~15s
33mm
外壳尺寸为38mm x 38mm x 33mm 的I3CMOS
I3CMOS01300KMA
1.3M/GLUX9701BSI(M,UV,RS)
1“(12.49x9.99)
9.76x9.76
2.57x108(e-/((W/m2).s))
QE89%@610nm
40(e-/s/pix)
30fps@1280×1024
30fps@640×512
1x1
2x2
63us~60s
38mm
I3CMOS01700KMA
1.7M/IMX432LLJ(M,GS)
1.1“ (14.4x9.9)
9.0x9.0
8100mv with 1/30s
0.3mv with 1/30s
98.6fps@1600×1100
1x1
6us~15s
38mm
I3CMOS01700KMB
1.7M/IMX425LLJ(M,GS)
1.1“ (14.4x9.9)
9.0x9.0
8100mv with 1/30s
0.3mv with 1/30s
210fps@1600×1100
1x1
6us~15s
38mm
I3CMOS02000KMA
2.0M/IMX430LLJ(M, GS)
1/1.7“(7.31x5.58)
4.5x4.5
3354mv with 1/30s
0.15mv with 1/30s
132fps@1624×1240
1x1
6us~15s
38mm
I3CMOS02800KMA
2.8M/IMX421LLJ(M,GS)
2/3“ (8.71x6.59)
4.5x4.5
3354mv with 1/30s
0.15mv with 1/30s
121fps@1936×1464
425fps@968×732
1x1
1x1
6us~15s
38mm
I3CMOS07100KMA
7.1M/IMX428LLJ(M,GS)
1.1“ (14.4x9.9)
4.5x4.5
3354mv with 1/30s
0.15mv with 1/30s
51.3fps@3200×2200
133.8fps@1584×1100
1x1
1x1
6us~15s
38mm
I3CMOS12300KMA
12.3M/IMX304LLR-C(M,GS)
1.1“(14.13x10.35)
3.45×3.45
1830mv with 1/30s
0.15mv with 1/30s
23.4fps@4096x3000
46.3fps@2048x1500
46.3fps@1024x750
1x1
2x2
4x4
30us~15s
38mm
I3CMOS12500KMA
12.5M/GMAX3412(M,GS)
1.1“ (13.93x10.44)
3.4×3.4
2.36x107e-/((W/m2)·s)
81.6e-/s
30fps@4096x3072
60fps@2048x1536
1x1
2x2
15us~15s
38mm
I3CMOS20400KMA
20.4M/IMX541-AAMJ-C(M,GS)
1.1“ (12.32x12.32)
2.74x2.74
2649mv with 1/30s
0.15mv with 1/30s
17.5fps@4496×4496
64.4fps@2240×2240
64.4fps@1120×1120
1x1
2x2
4x4
30us~15s
38mm
