相关参数

订单编号 有效焦距
(mm)
F/#(光圈值) 光学畸变 视场 工作距离 滤镜螺纹 镜头接口 下载资料
D H V
TPL-1228ML12M 12 F2.8-F22 0.51% 69.35° 57.95° 45.54° 0.1m-∞ M46x0.75 C
TPL-1623ML12M 16 F2.3-F22 0.40% 54.39° 44.56° 34.45° 0.1m-∞ M43x0.75 C
TPL-2520ML12M 25 F2.0-F22 0.25% 35.3° 28.68° 21.75° 0.1m-∞ M37.5x0.5 C
TPL-3520ML12M 35 F2.0-F22 0.15% 25.27° 20.4° 15° 0.2m-∞ M37.5x0.5 C
TPL-5022ML12M 50 F2.2-F22 0.10% 16.18° 13° 9.77° 0.25m-∞ M37.5x0.5 C
TPL-7526ML12M 75 F2.6-F32 -0.35% 7.53° 6.05° 4.65° 0.3m-∞ M34x0.5 C
TPL-0625ML12M 6 F2.5-F22 0.23% 107.35° 86.02° 64.58° 0.15m-∞ M62x0.75 C
TPL-0828ML12M 8 F2.8-F16 -0.47% 93.85° 80.89° 65.21° 0.12m-∞ M55x0.75 C

主要特征

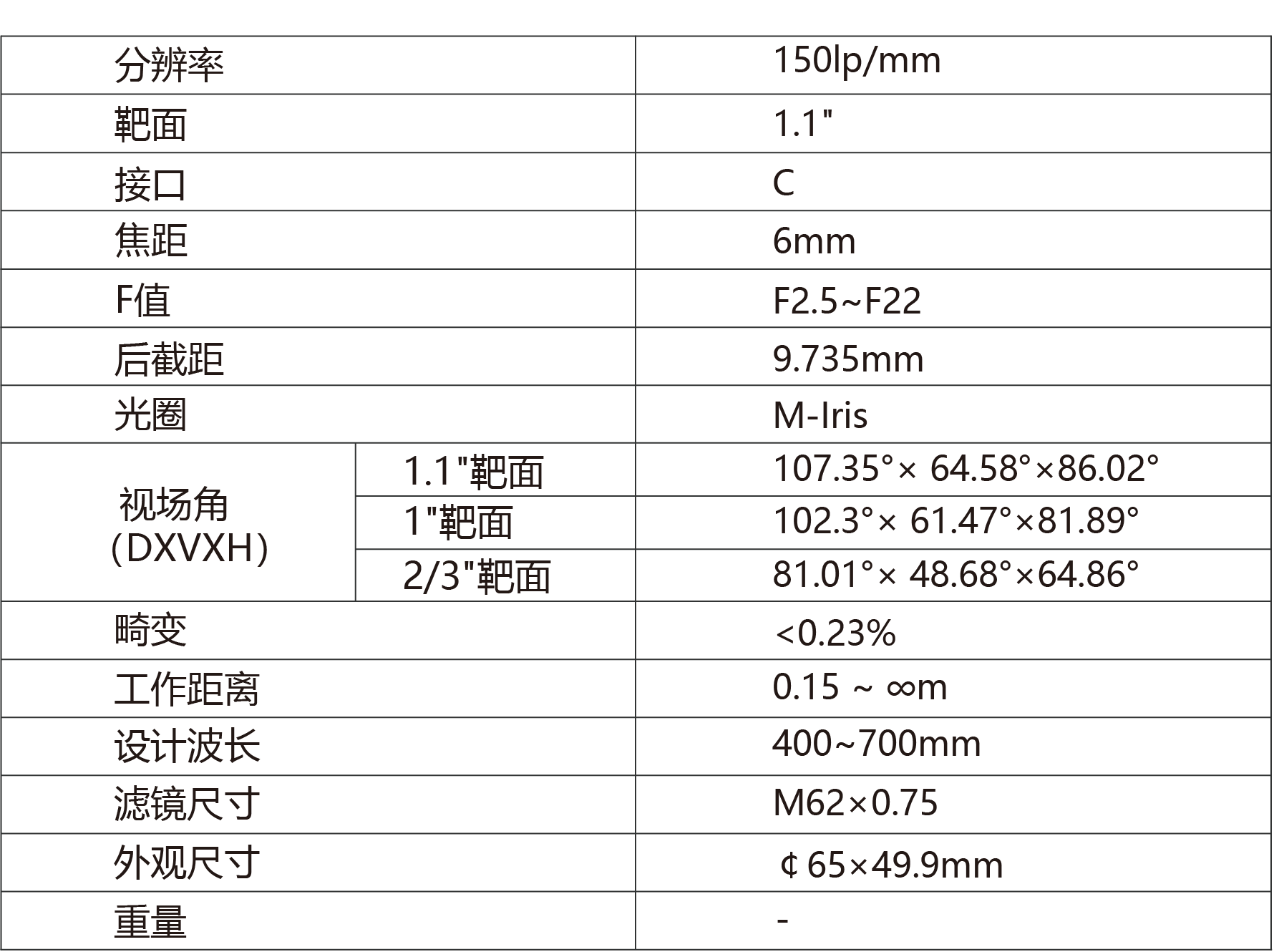

TPL-0625ML12M

TPL-0625ML12M镜头
TPL-0625ML12M镜头
TPL-0625ML12M镜头

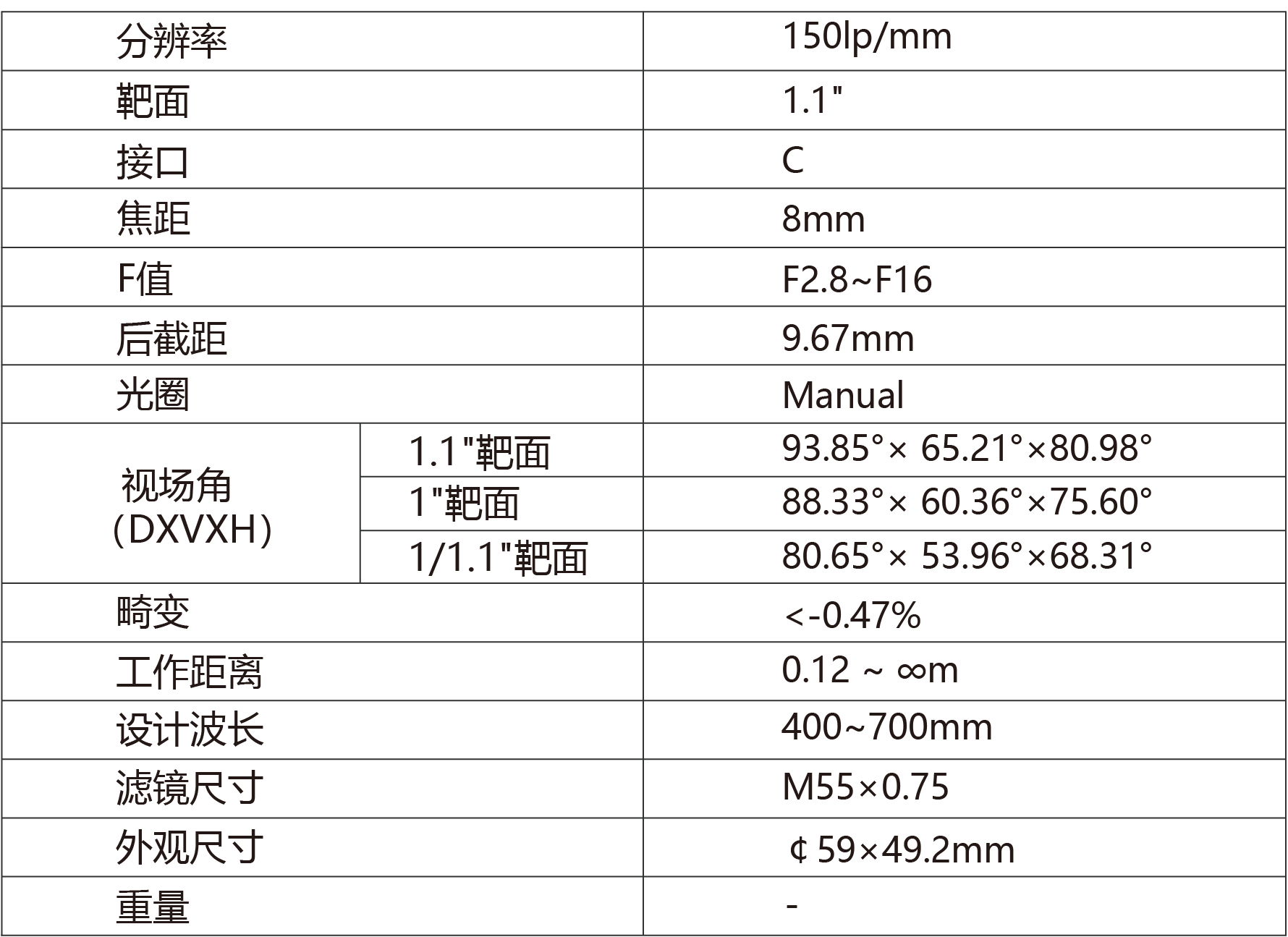

TPL-0828ML12M

TPL-0828ML12M镜头
TPL-0828ML12M镜头

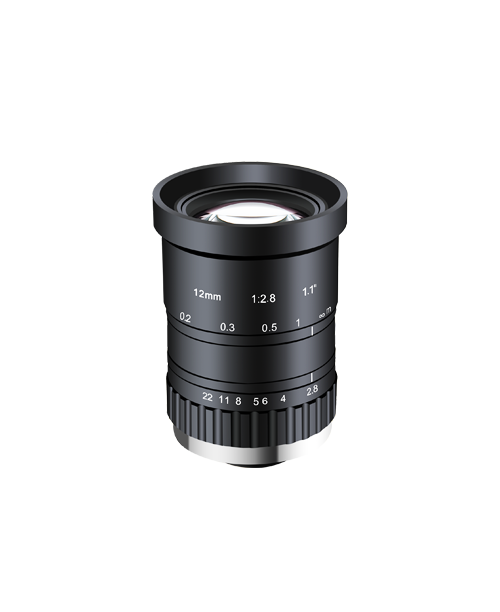

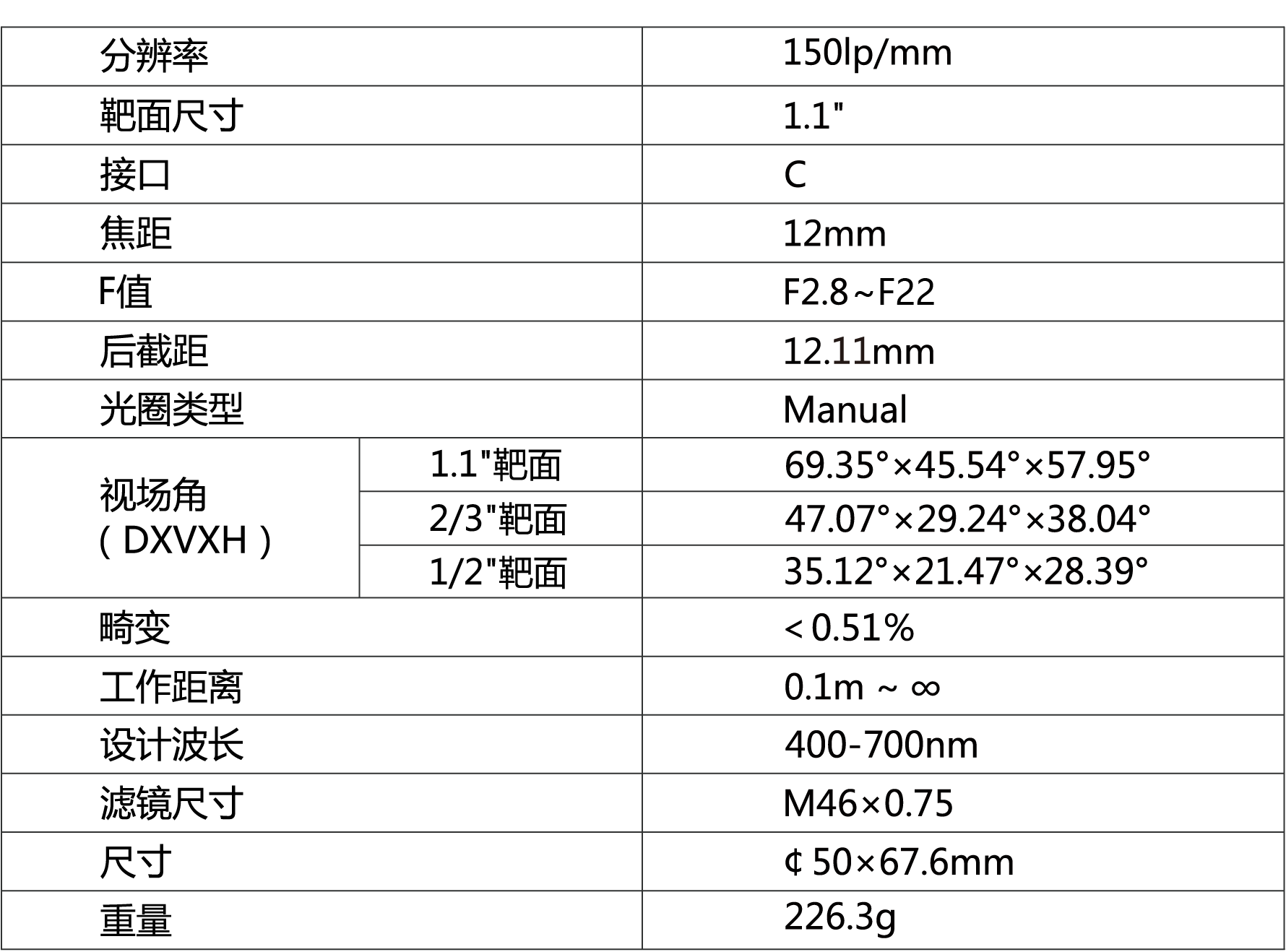

TPL-1228ML12M

TPL-1228ML12M镜头
TPL-1228ML12M镜头
TPL-1228ML12M镜头

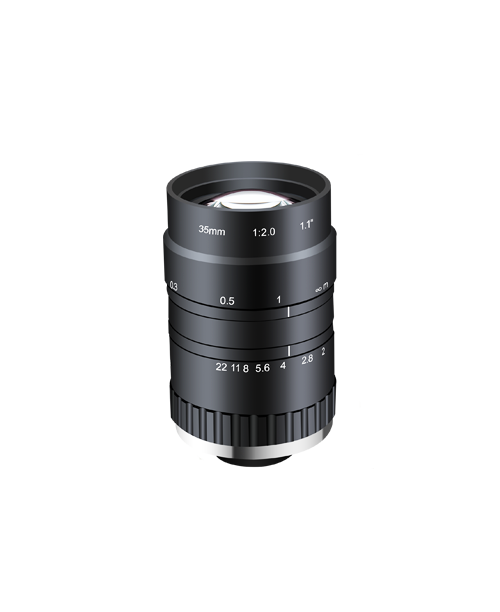

TPL-3520ML12M

TPL-3520ML12M镜头
TPL-3520ML12M镜头
TPL-3520ML12M镜头

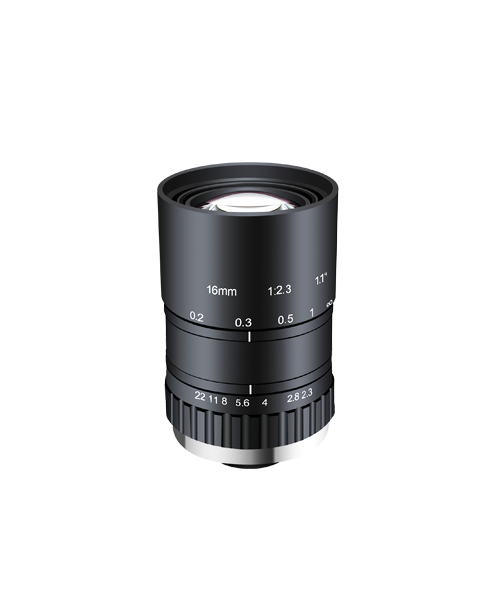

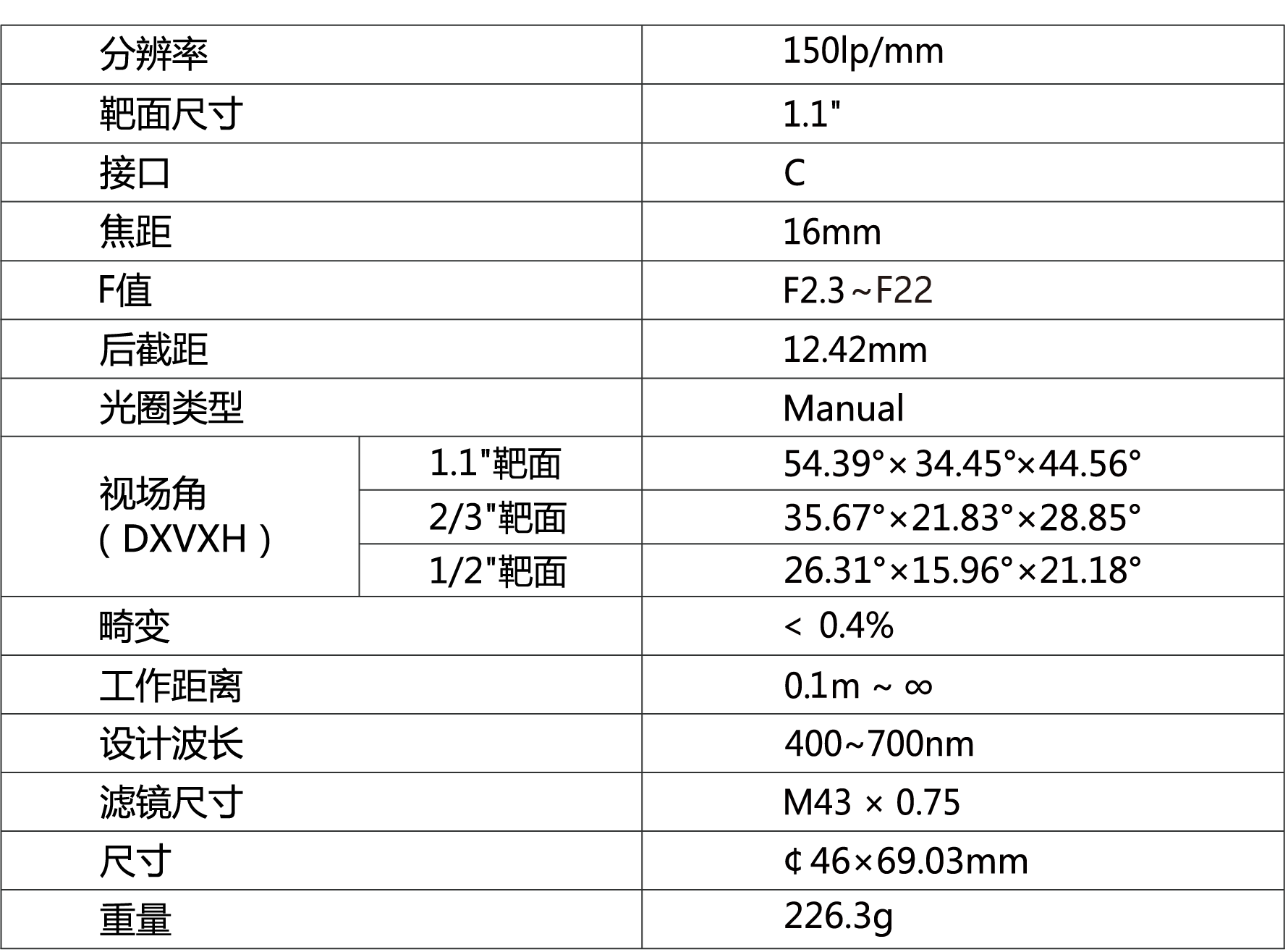

TPL-1623ML12M

TPL-1623ML12M镜头
TPL-1623ML12M镜头
TPL-1623ML12M镜头

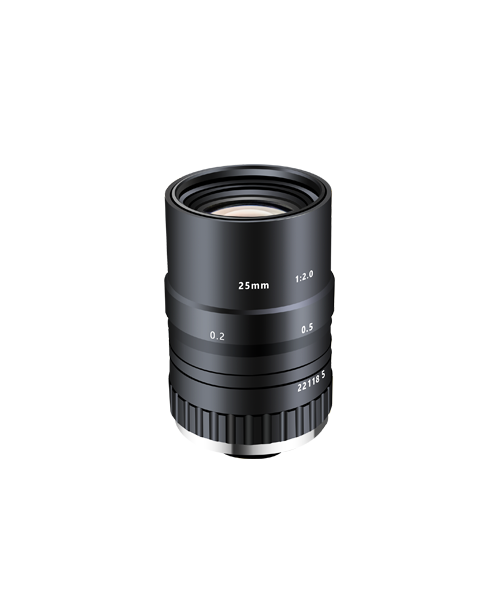

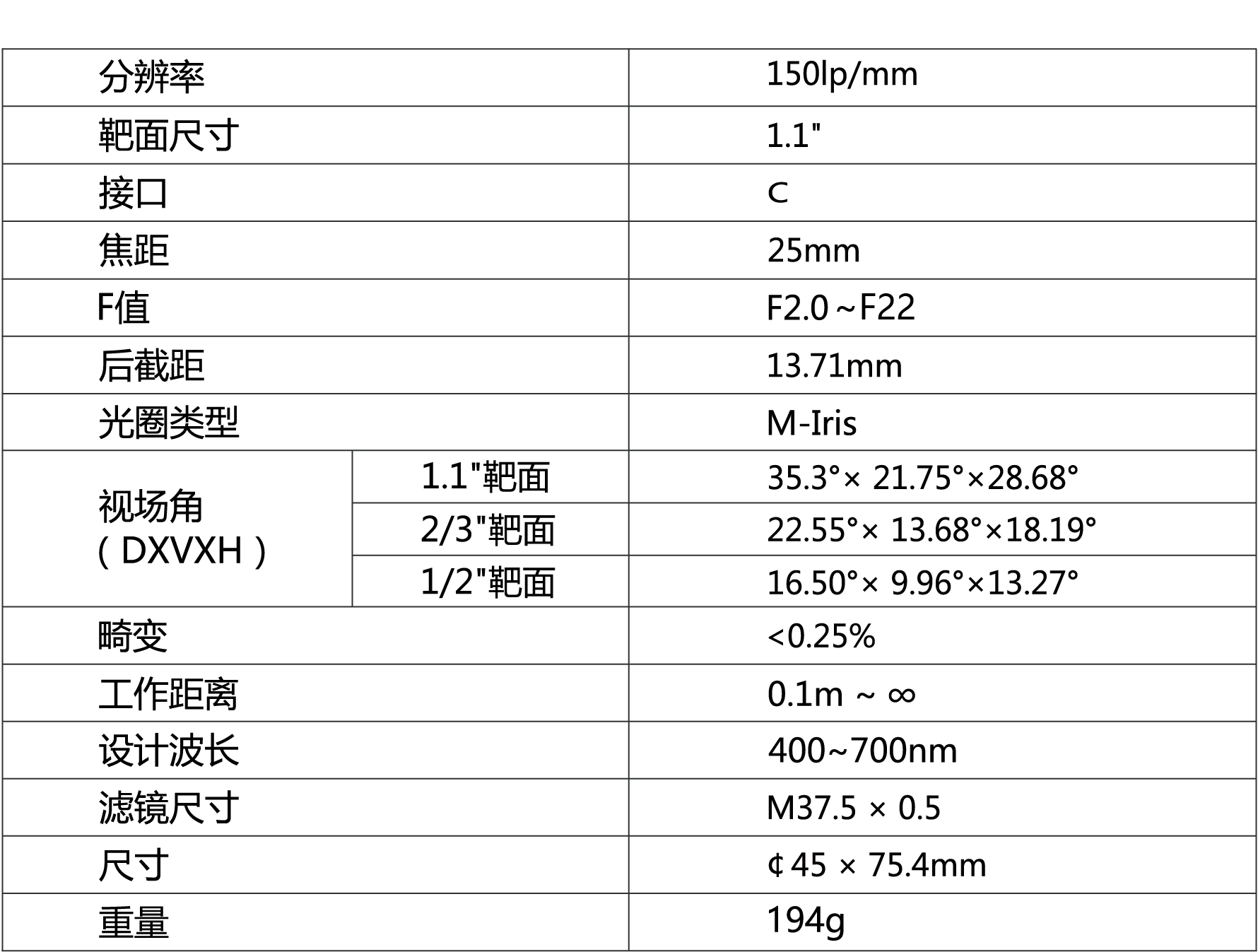

TPL-2520ML12M

TPL-2520ML12M镜头
TPL-2520ML12M镜头
TPL-2520ML12M镜头

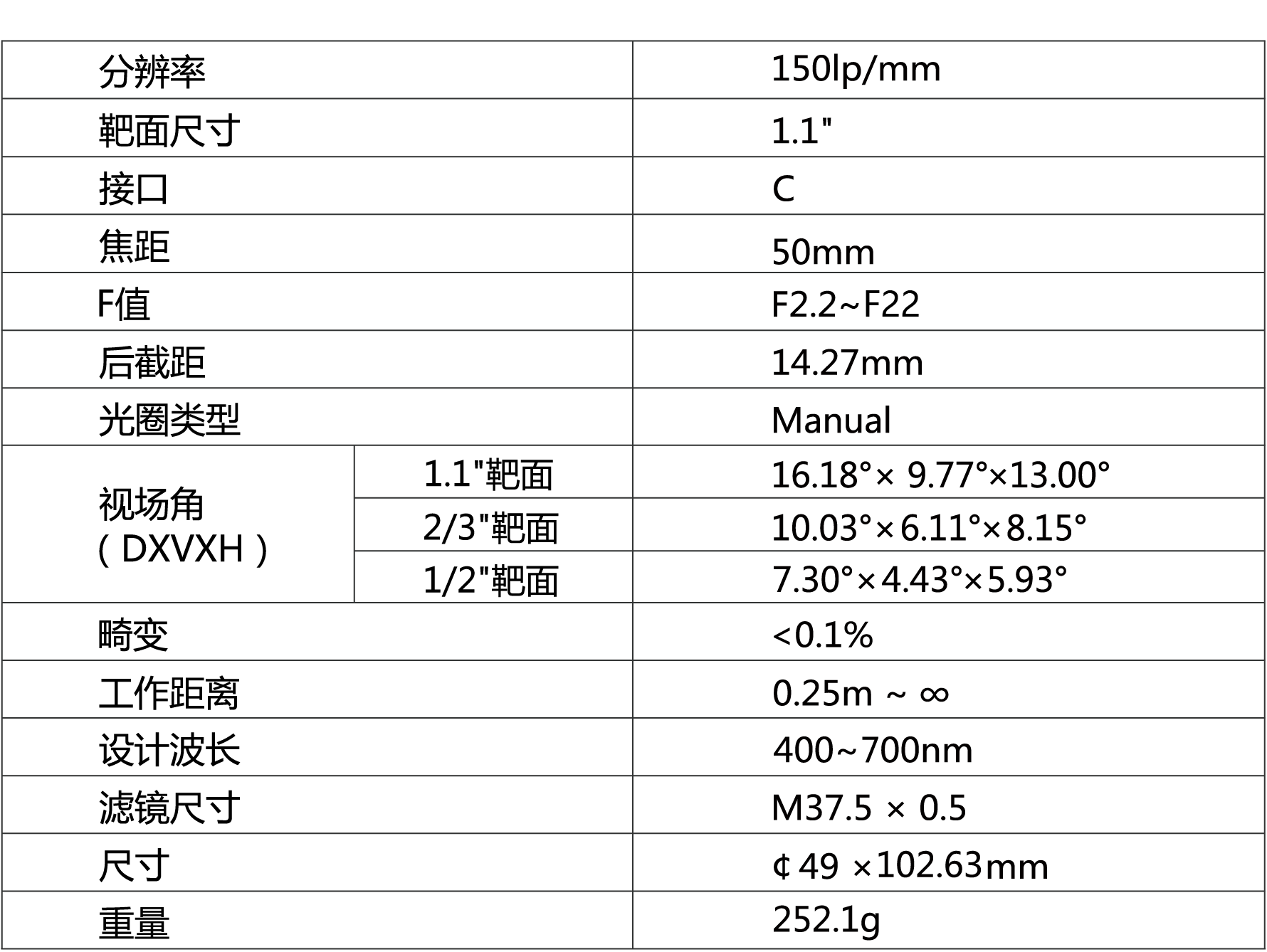

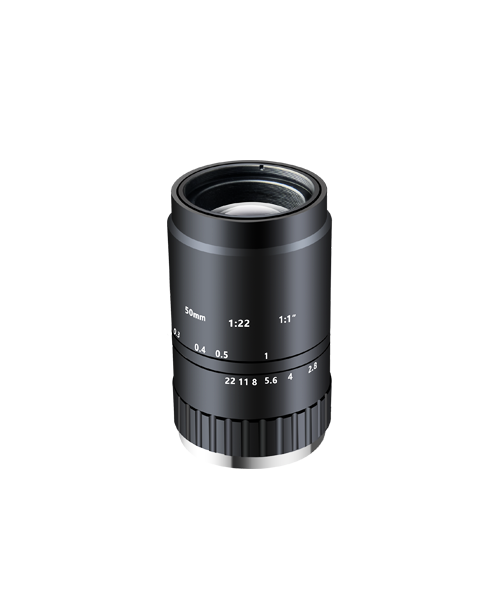

TPL-5022ML12M

TPL-5022ML12M镜头
TPL-5022ML12M镜头
TPL-5022ML12M镜头

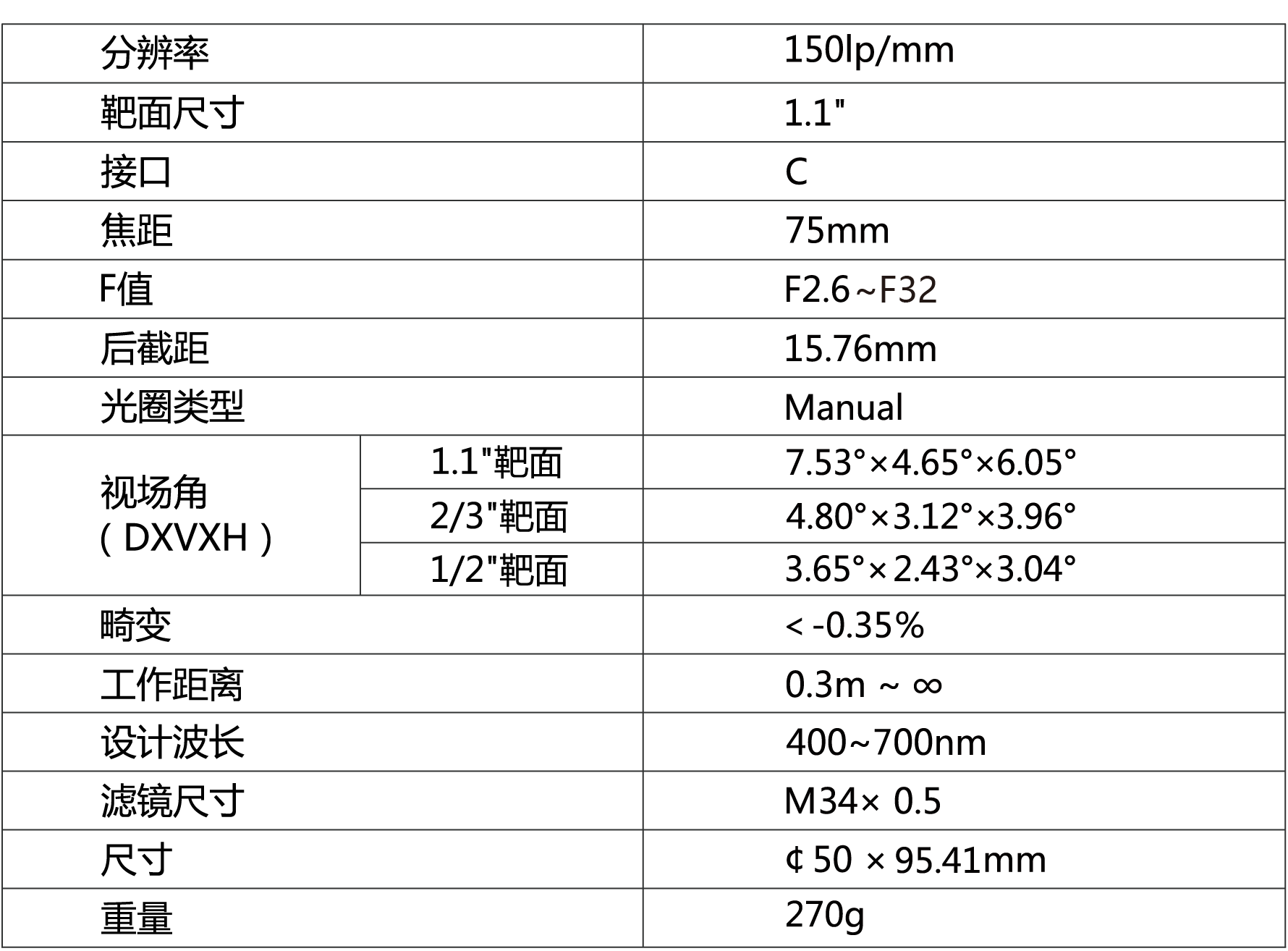

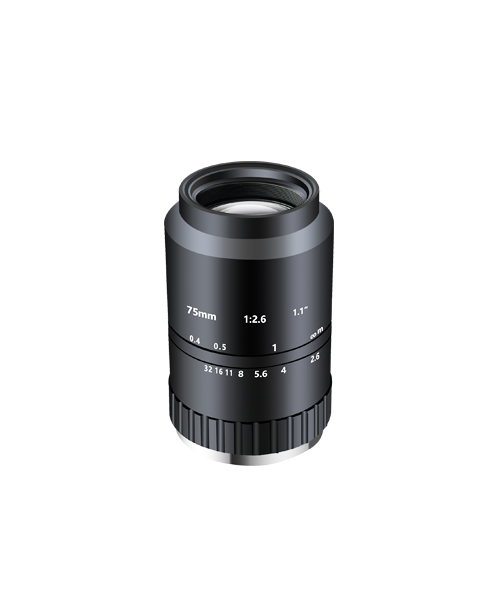

TPL-7526ML12M

TPL-7526ML12M镜头
TPL-7526ML12M镜头
TPL-7526ML12M镜头
